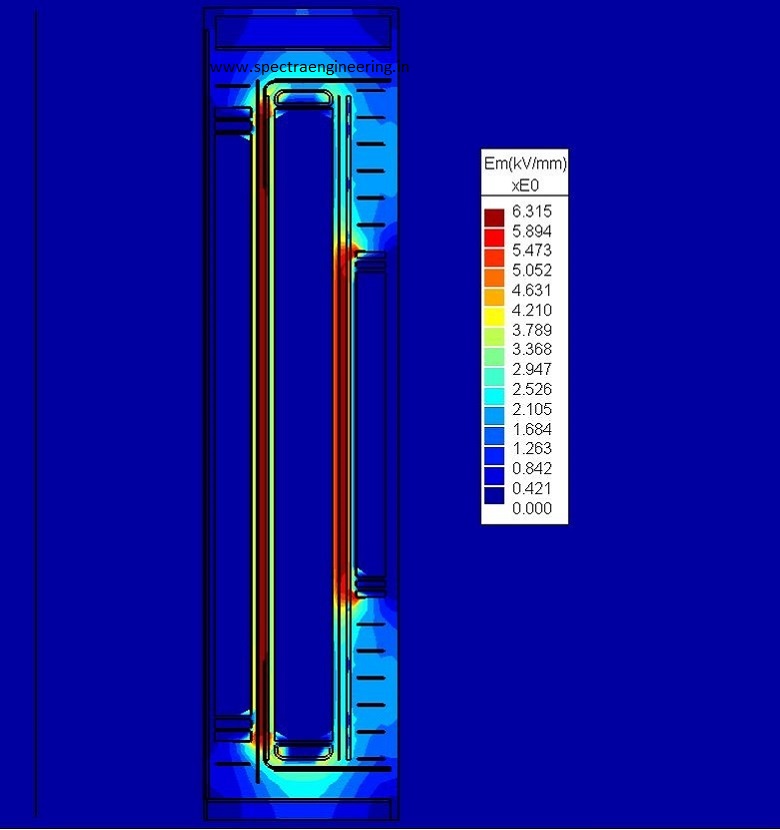

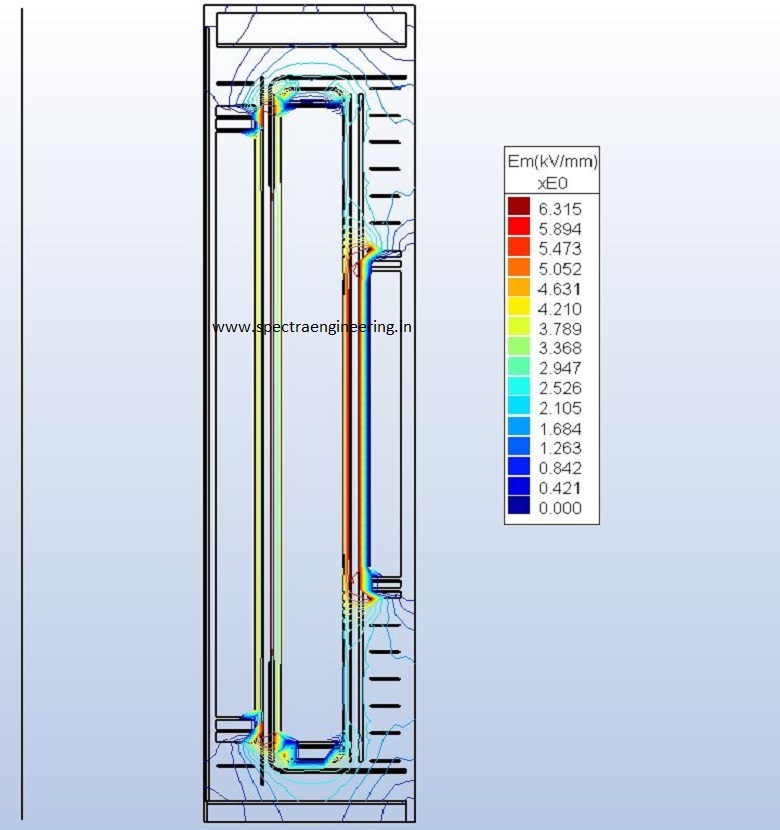

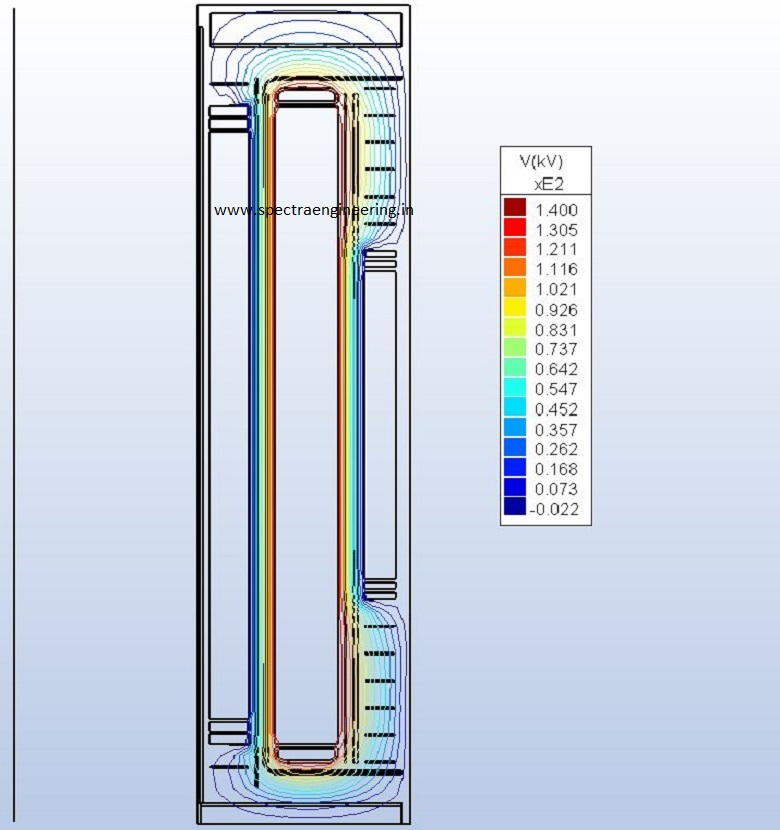

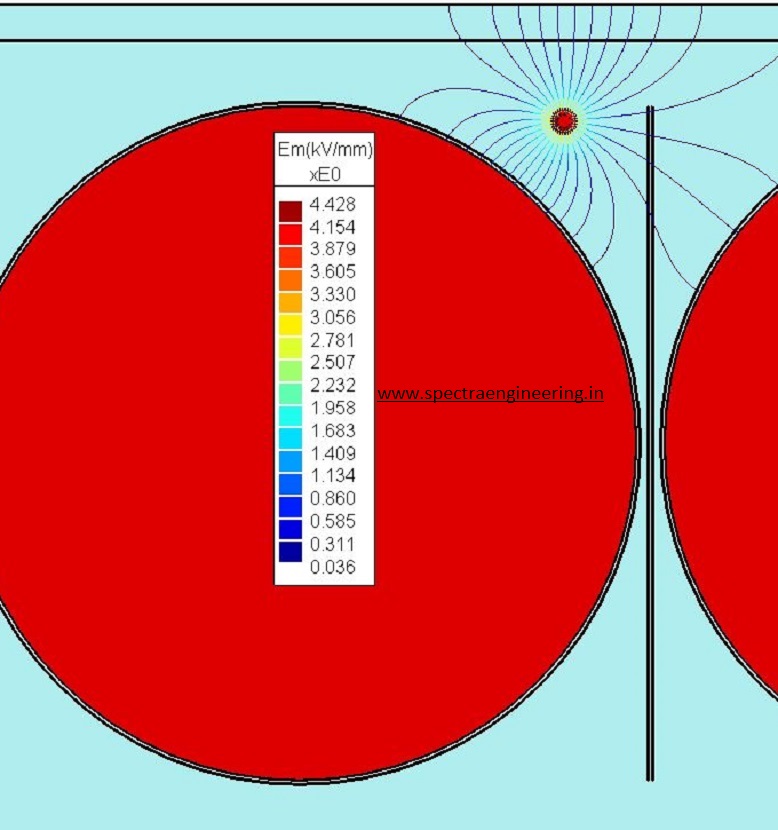

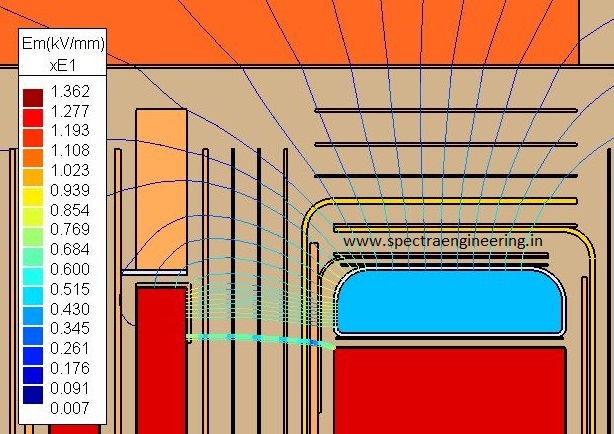

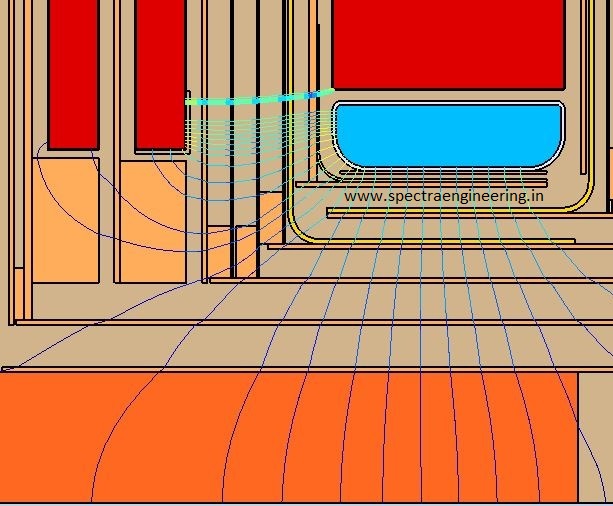

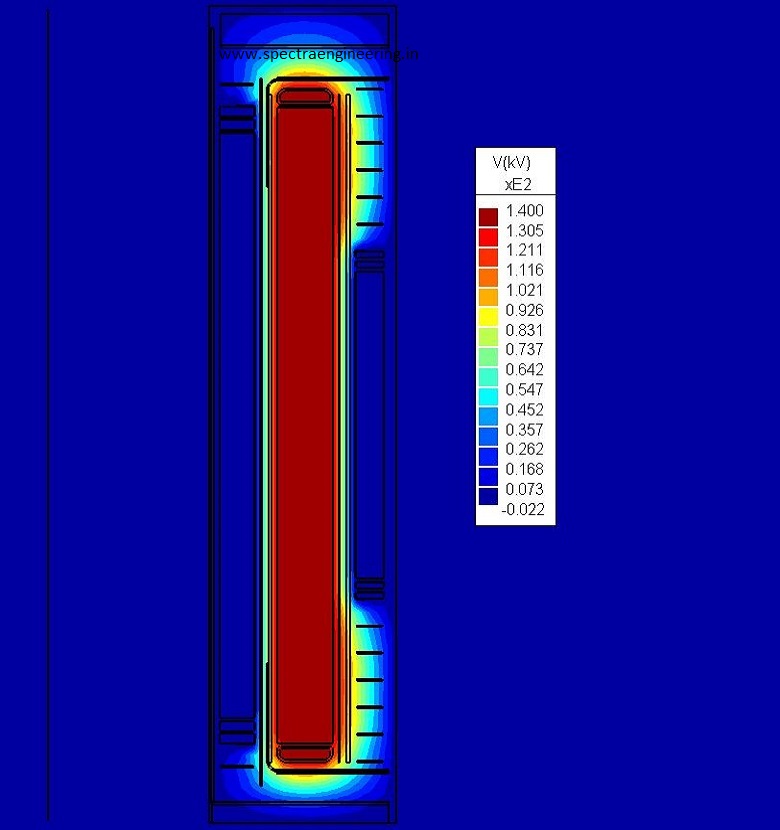

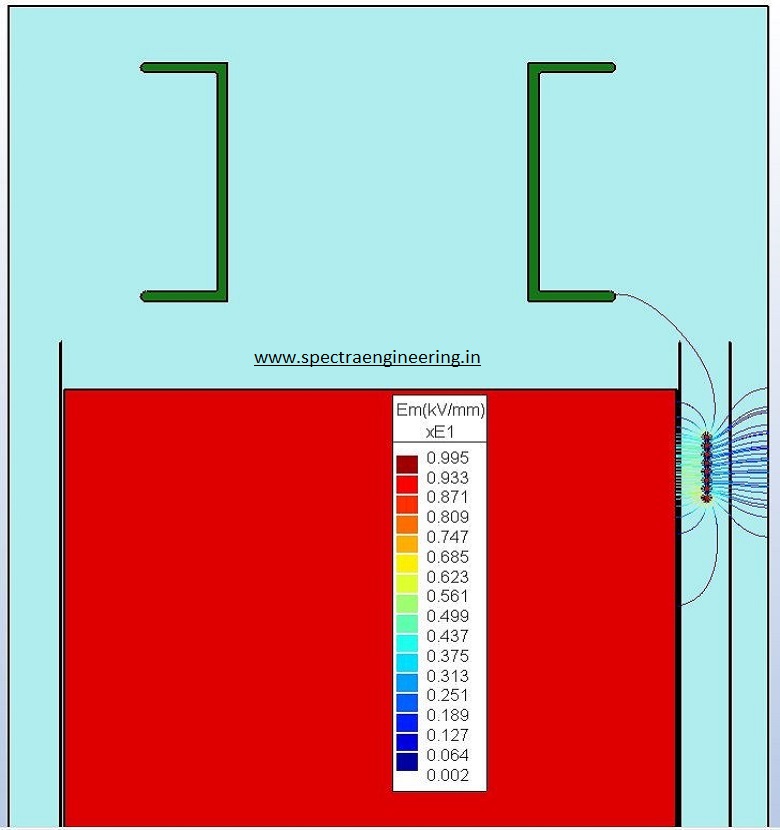

Electric Field Analysis is done to check Electric strength of Transformer insulation.

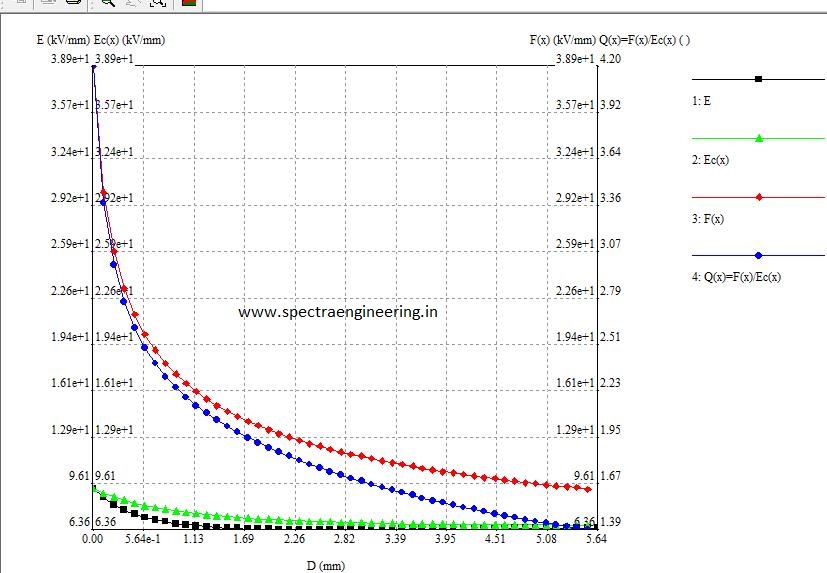

Voltage stress is converted from Differenet test voltages like Full Wave Lightening Impulse , Chopped Wave Lightening impulse to equivalent DIL and voltage stress in insulation is compared with Weidmann Curves.
